应用说明
主要用于调整交流电动机的运行频率和电压，从而控制电动机的转速和输出功率。其主要工作原理是将交流电源转换为直流电源，再通过逆变器将直流电源转换为可调变频、可调电压的交流电源输出。
工作原理拓扑图

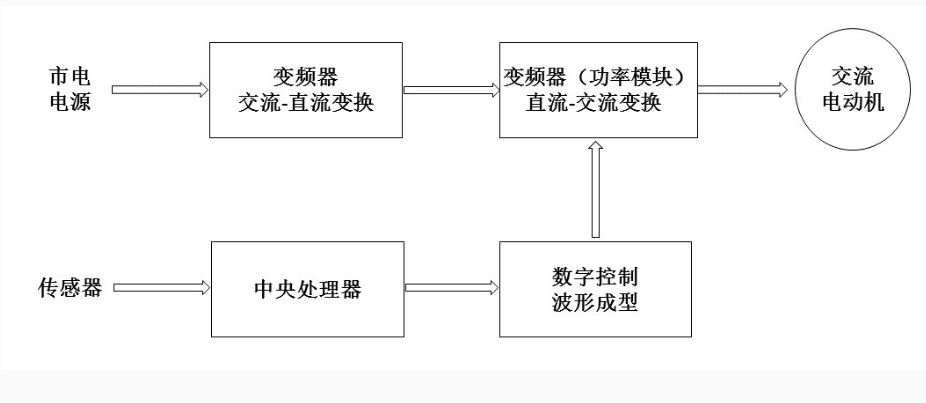

低压变频器原理框图
低压变频器拓扑图
拓扑结构表

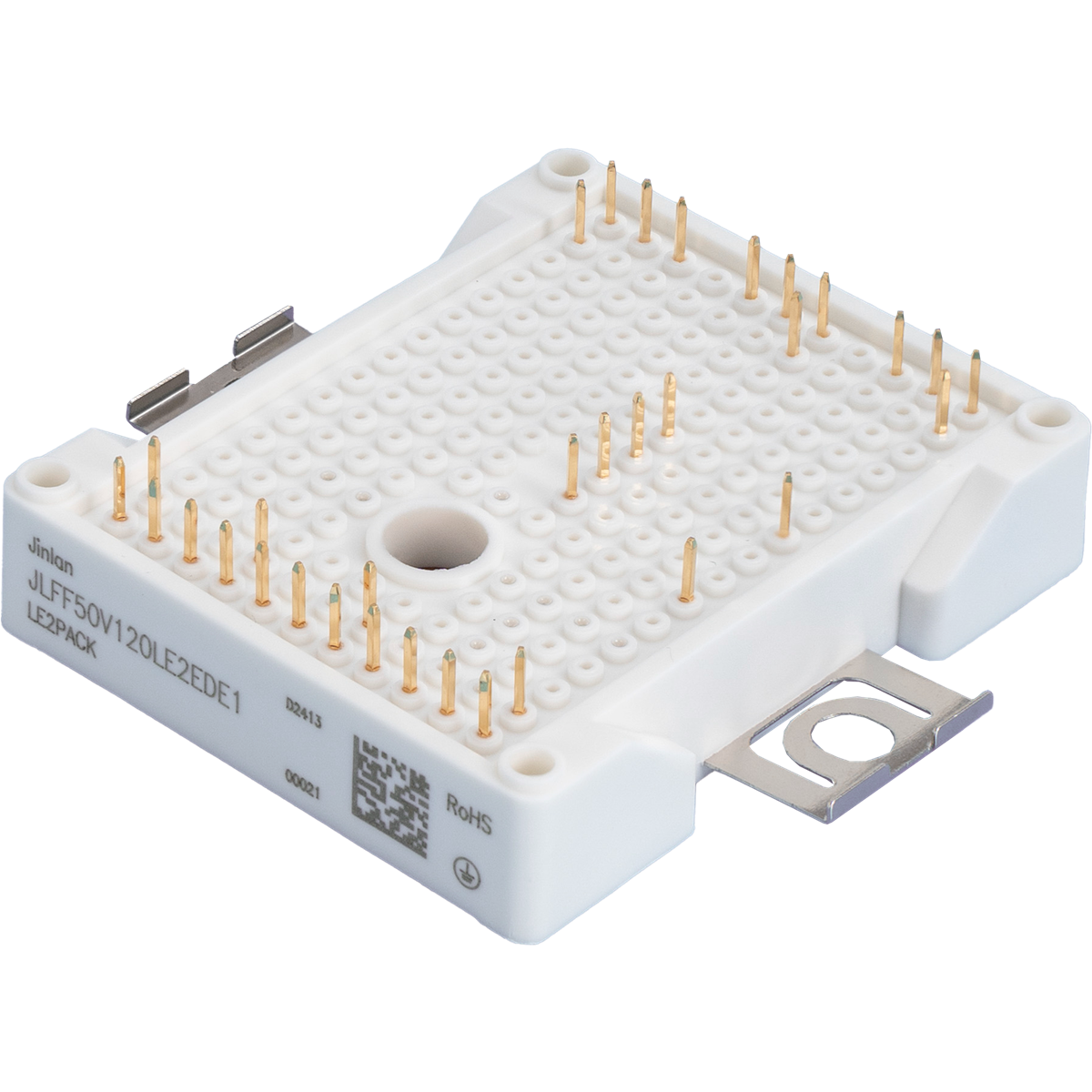

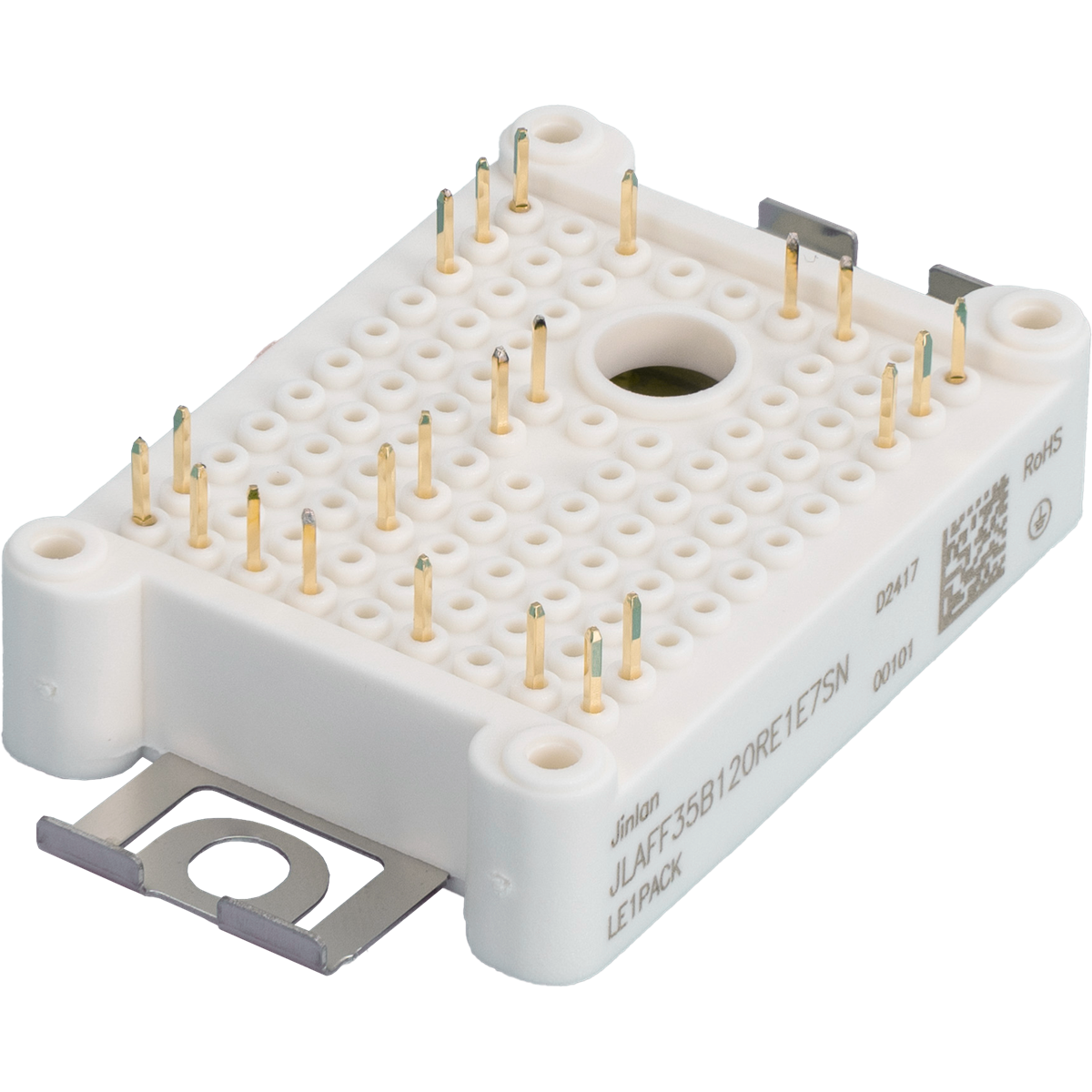

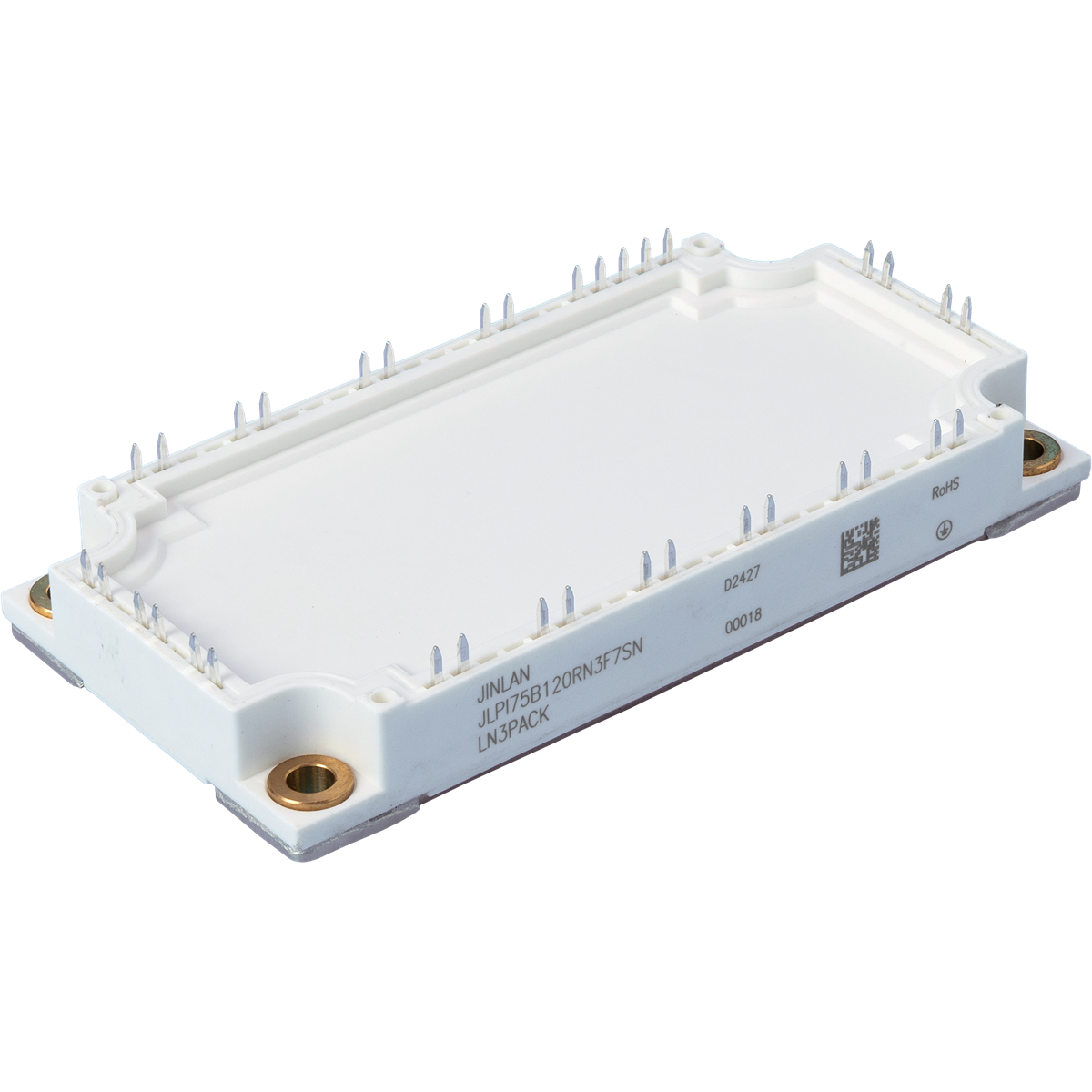

拓扑结构 | 封装 | 型号 | 外型 |
| E1 | JLPI15B120RE1E7SN |
|
E1 | JLPI25B120RE1E7SN | ||
E2 | JLPI15B120RE2E7SN | | |
E2 | JLPI25B120RE2E7SN | ||
E2 | JLPI35B120RE2E7SN | ||
E2 | JLPI50B120RE2E7SN | ||
| N2 | JLPI10B65RN2E7SN |
|
N2 | JLPI15B65RN2E7SN | ||
N2 | JLPI25B65RN2E7SN | ||
N2 | JLPI35B65RN2E7SN | ||
N2 | JLPI40B65RN2E7SN | ||
N2 | JLPI50B65RN2E7SN | ||
N2 | JLPI75B65RN2E7SN | ||
N2 | JLPI10B120RN2E7SN | ||
N2 | JLPI15B120RN2E7SN | ||
N2 | JLPI25B120RN2E7SN | ||
N2 | JLPI35B120RN2E7SN | ||
N2 | JLPI40B120RN2E7SN | ||
N2 | JLPI50B120RN2E7SN | ||
N2 | JLPI75B120RN2E7SN | ||
N2 | JLPI100B120RN2E7SN | ||
| N3 | JLPI50B65RN3E7SN |
|
N3 | JLPI75B65RN3E7SN | ||
N3 | JLPI100B65RN3E7SN | ||
N3 | JLPI150B65RN3E7SN | ||
N3 | JLPI50B120RN3E7SN | ||
N3 | JLPI75B120RN3E7SN | ||
N3 | JLPI100B120RN3E7SN | ||
N3 | JLPI150B120RN3E7SN | ||
N3 | JLPI200B120RN3E7SN |
